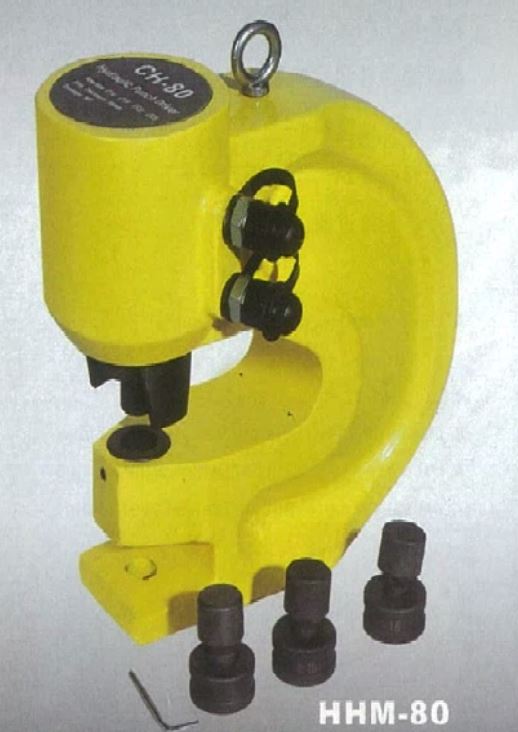

Aiko 50 Ton Hydraulic Busbar Punching Tool for 14mm Iron Sheet | Heavy Duty HHM 80 Model | Perfect for Electrical Panel Fabrication & Metalworking Projects

Product Description

Features :

• Suitable for punching holes on L and H shape iron plates, copper and aluminium busbars
• Flat pedestal to provide steadiness in operation
• Punch dies made of high carbon tungsten steel and not easy to wear off.

Specifications :

• Tonnage : 50 T
• Bending Formers Diameters :
• 5/8" (16mm) x 1
• 3/4" (18mm) x 1
• 7/8" (22mm) x 1
• 1" (25mm) x 1
• Max. Punchable Thickness :
• For Iron Sheet : 14mm
• For Copper Busbar : 16mm
• Throat Thickness : 115mm
• Weight : 52kg
• Dimension (L x W x H) : 370 x 225 x 400mm
